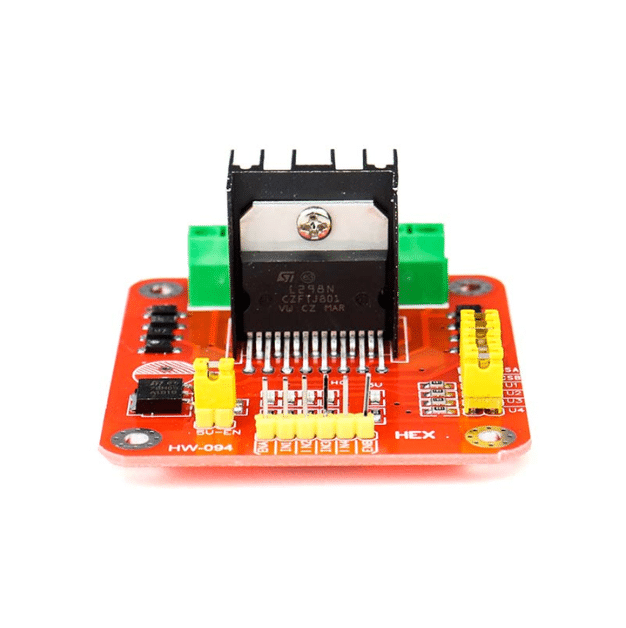

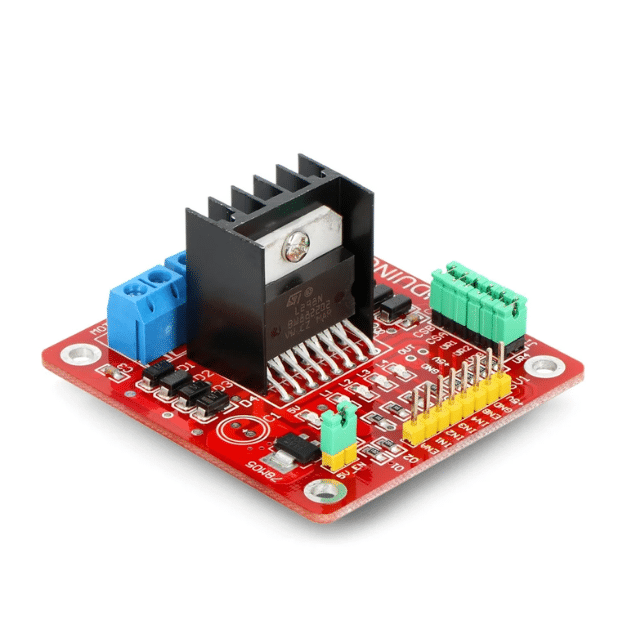

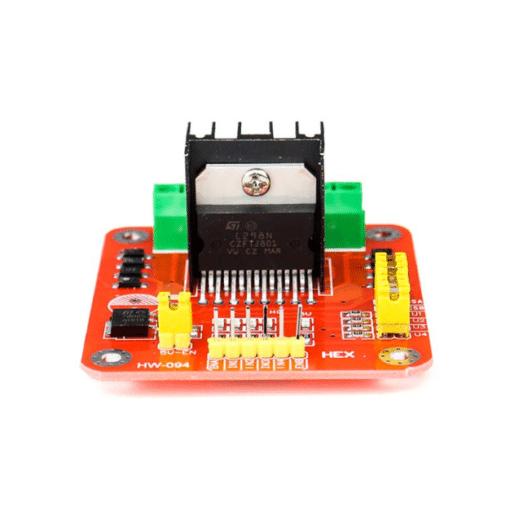

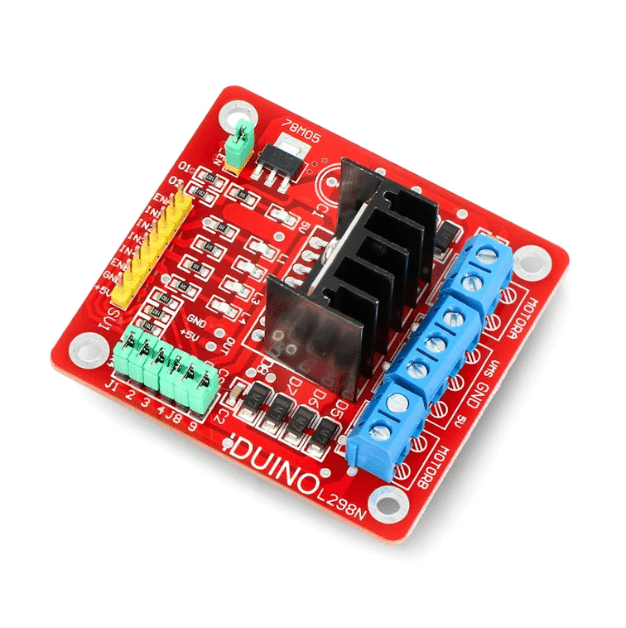

L298N Dual H-Bridge DC Stepper Motor Driver Board

The L298N Motor Driver Module is a robust and versatile motor control solution designed for driving DC motors and stepper motors with ease. Featuring the popular L298N dual full-bridge driver IC, this module can independently control the speed and direction of two DC motors or one stepper motor, making it ideal for robotics, automation, and mechatronics projects.

Compatible with a wide range of microcontrollers, including Arduino and Raspberry Pi, the L298N driver board offers convenient features like on-board power regulation, direction control, and PWM speed control.

Key Features

• Dual H-Bridge Control: Independently control two DC motors or one stepper motor

• Wide Voltage Range: Supports motor supply up to 35V

• High Current Output: Up to 2A per channel (peak)

• Onboard 5V Regulator: Can supply logic voltage to the driver (jumper-enabled)

• Direction and Speed Control: Supports PWM for speed and logic inputs for direction

• Screw Terminals: Easy motor and power wiring

• Compatible: Works with Arduino, Raspberry Pi, ESP32, and more

Technical Specifications

Package Includes

• 1 × L298N Dual H-Bridge DC Stepper Motor Driver Board
