L298 Motor Driver Breakout

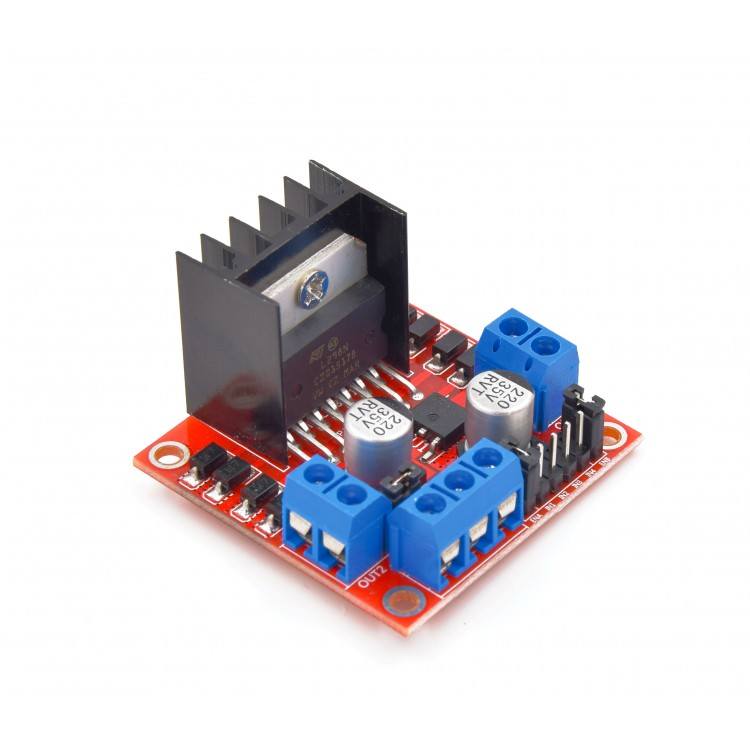

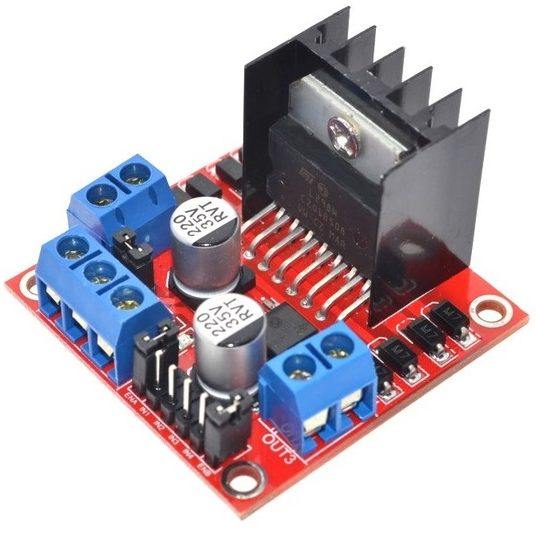

This LM298 Motor Driver Breakout uses an L298N integrated circuit and can control two motors. A 7805 is added to the board as a power supply of the logic circuit portion. Jumper P4 can be used to determine if 7805 is used or not. There are also optional pull-up resistors to use for the MCUs of weak output driving capability. Diodes are added to prevent the reverse output of DC motor that hurts L298N.

VMS is the power supply of the driving circuit.

+5V is the power supply of the logic circuit.

VCC is the driving pin of the motor.

EA and EB are the two enabling pins of the dual-H bridges.

PWM control, I2, I1, I4, and I3 are used to control the direction of the DC motors.

Technical details

1. chipset: L298N
2. Driving power supply voltage Vs: +5V  to +46V
3. Peak current of driving power supply Io: 2A
4. Vss: +5V to +7V
5. The current of logic power supply: 0 – 36mA
6. PWM control signal range:
   • Low level: -0.3V < Vin < 1.5V
   • High level: 2.3V < Vin< Vss
7. Enable signal range:
   • Low level: -0.3V
   • High level: 2.3V < Vin< Vss
8. Maximum power consumption: 25W
9. Working temperature: -25C to 130C
