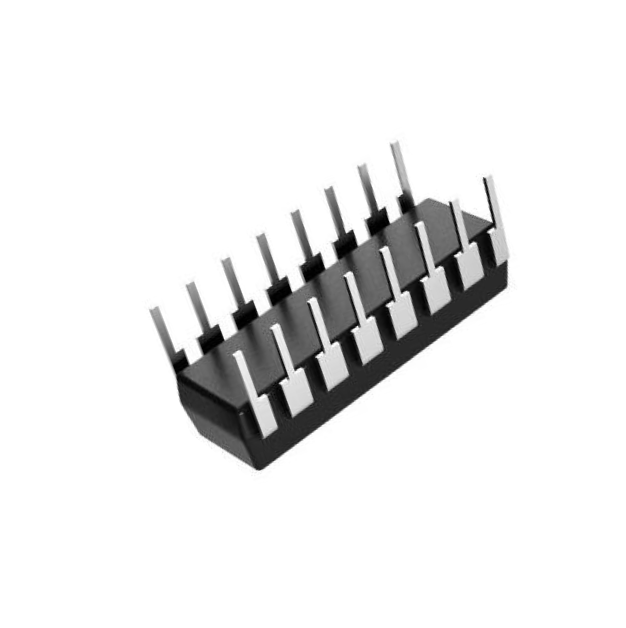

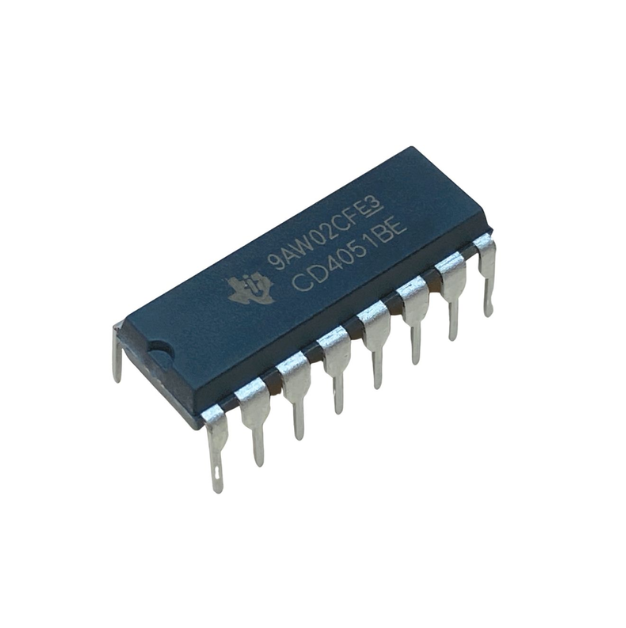

CD4051BE – 8-Channel Analog Multiplexer/Demultiplexer IC

The CD4051BE is a versatile 8-channel analog multiplexer/demultiplexer IC designed for both digital and analog signal switching. With wide voltage support and low power consumption, it’s perfect for applications in data acquisition, sensor selection, signal routing, and more.

🔧 Features:

• 8-channel single-ended analog multiplexer/demultiplexer

• Compatible with both digital and analog signals

• Control Inputs: 3-bit binary address (A, B, C) + Enable (INH)

• Operating Voltage Range: 3V to 18V

• Low “ON” resistance (~270Ω at V_DD = 10V)

• Wide analog input voltage range (0 to V_DD)

• Package: DIP-16 (Through-hole)

• TTL and CMOS logic compatible

⚡ Applications:

• Signal selection and routing

• Sensor input multiplexing

• Data acquisition systems

• Audio signal switching

• Microcontroller-based control systems

📦 Package Includes:

• 1 x CD4051BE Analog Multiplexer/Demultiplexer IC (DIP-16)
