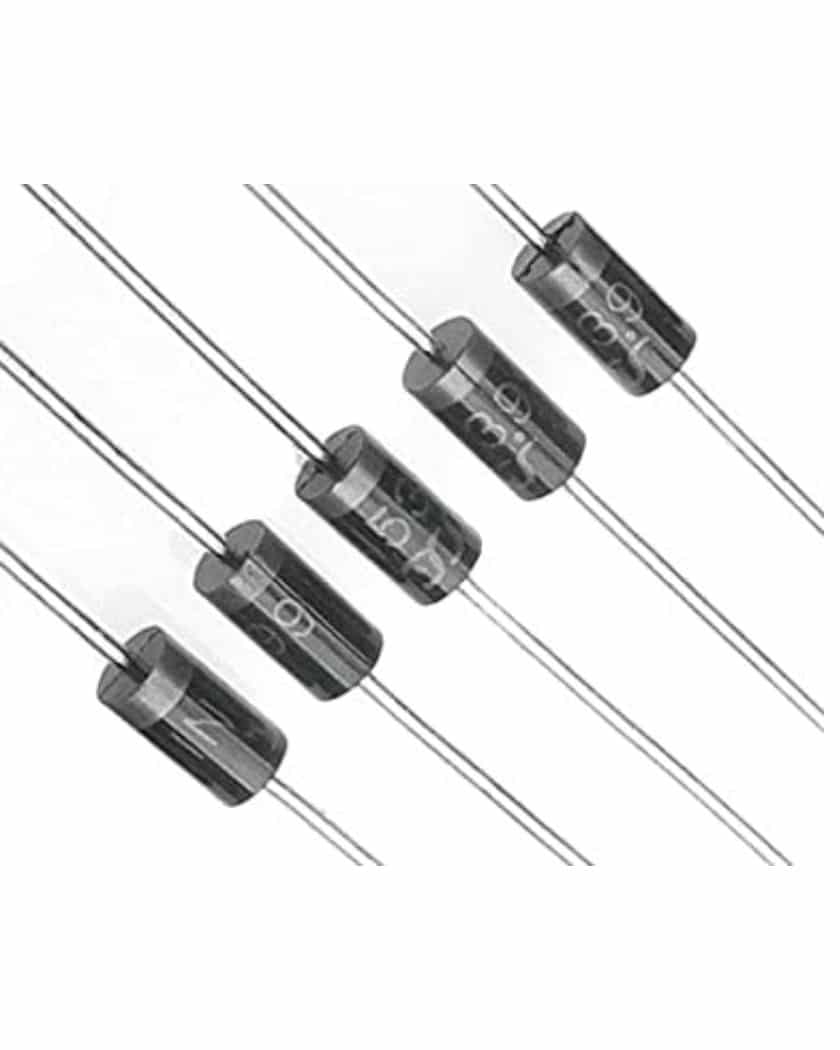

1N5399 diode1.5A Diode 10pcs per pack

Description

This is a silicon rectifier diode with high current capability. 1N5399 diode has a cathode (-) and anode (+). In the schematic symbol, the tip of the triangle with the line on top of it is the cathode. The cathode is marked on the body of a diode by a band. Diode polarity Current can flow from the anode to the cathode only and never from the cathode to the anode – 1N5399 diode is like a one-way valve.

Characteristics of 1N5399 diode 1.5A Power Diode:

• Maximum Recurrent Peak Reverse Voltage – 1000 V
• Maximum Average Forward Output Current – 1.5 A
• Maximum Forward Voltage Dropper element at 1.0A DC – 1.1 V
• Typical Junction Capacitance 20 pF
• Package – DO-15
• Weight 0.38 grams
• Operating and Storage Temperature Range -65…+175 °C

Package includes:

• 1x 1N5399 diode1.5A Diode 10pcs per pack
