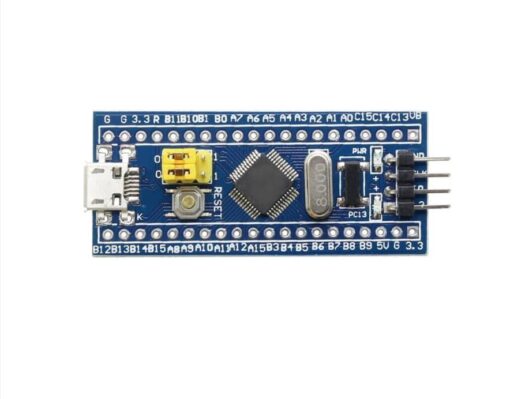

STM32F103C8T6 Minimum System Board – STM32 ARM Cortex-M3 Core (Blue Pill)

The STM32F103C8T6 Minimum System Board, also known as the “Blue Pill”, is a powerful, compact, and affordable development board based on the STM32 ARM Cortex-M3 32-bit microcontroller. Designed for performance-critical applications, this board is perfect for embedded systems, robotics, IoT, and real-time control projects.

With 64KB Flash, 20KB SRAM, multiple GPIOs, timers, and hardware interfaces like SPI, I2C, USART, ADC, and PWM, the Blue Pill offers a rich feature set in a small footprint. It is compatible with platforms such as STM32CubeIDE, Arduino IDE (via STM32duino), and PlatformIO.

Key Features

• Powerful ARM Cortex-M3 Core: 32-bit performance at an affordable price

• Compact Design: Ideal for breadboarding and embedded integrations

• Multiple Interfaces: SPI, I2C, UART, ADC, PWM, USB, and more

• Wide Community Support: Works with Arduino IDE, STM32Cube, and other platforms

• USB & Serial Programming Options: Can be programmed via USB (with bootloader) or using ST-Link/V2

• Perfect for Learning & Prototyping: Popular choice for students, makers, and professionals

Technical Specifications

Package Includes

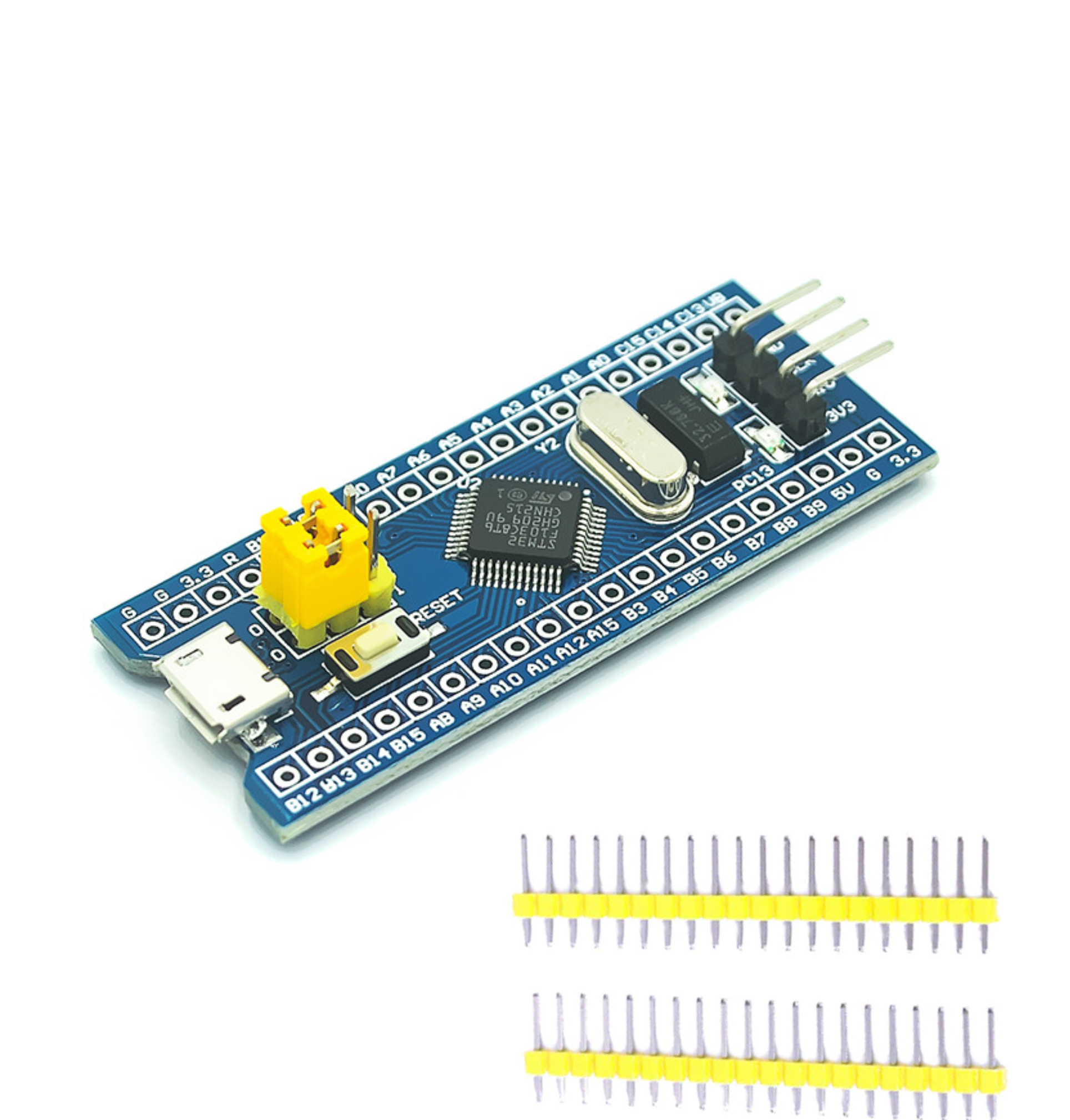

• 1 × STM32F103C8T6 Minimum System Board (Blue Pill)

• 2 × 40-pin Male Header Strips (unsoldered)

Note:
You may need an ST-Link V2 programmer or USB-to-Serial adapter for flashing the board, depending on your development environment.
