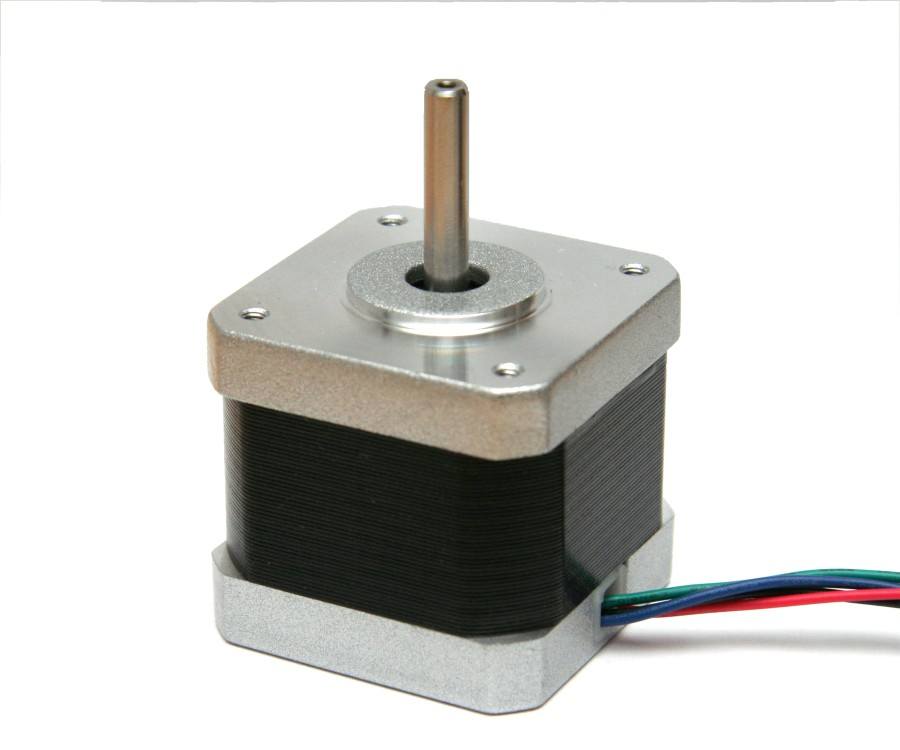

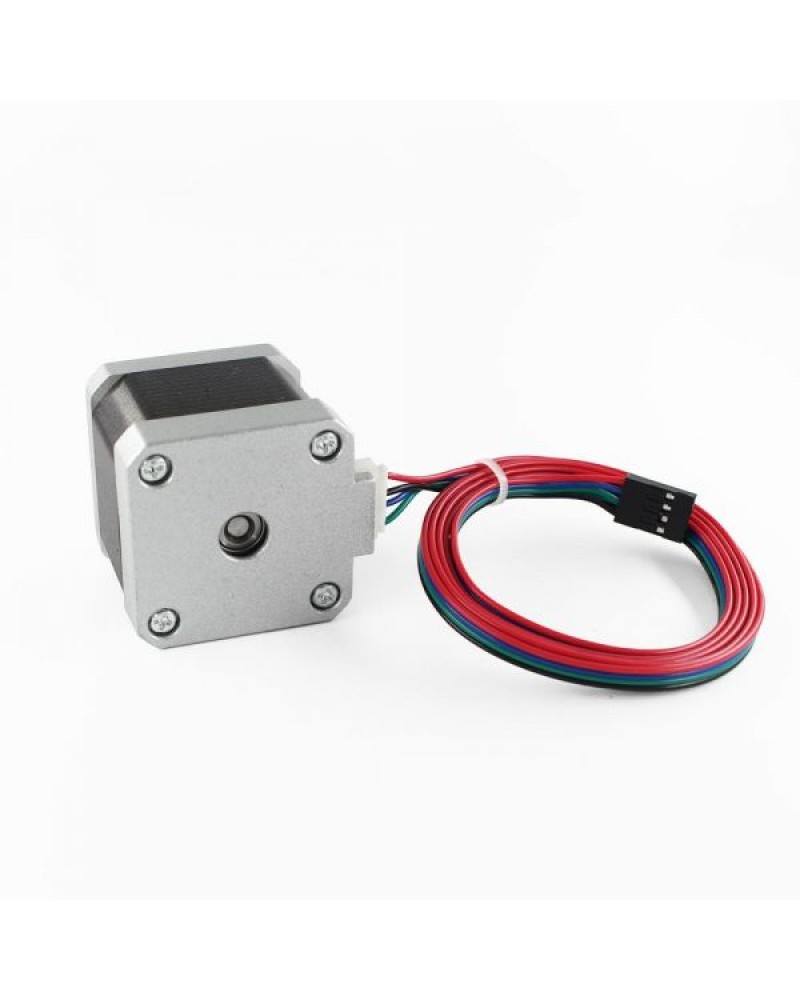

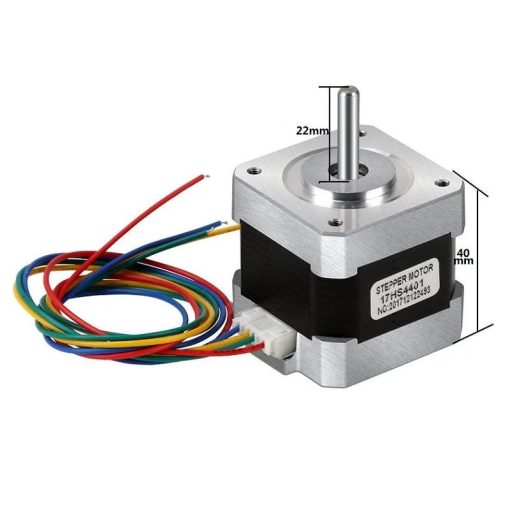

NEMA 17 Stepper Motor – 34mm Length, 1.5A with 720mm Cable

The Nema17 stepper motor is a stepper motor with an end face size of 1.7 inches x 1.7 inches. Available in single and dual shaft, 1.8° step angle (200 steps/revolution). Each phase draws 1.2 A at 4 V, allowing for a holding torque of 3.2 kg-cm. NEMA 17 Stepper motor is generally used in Printers, CNC machines and Laser Cutters.

Pin Mode

 Technical Specifications

1. Rated Voltage: 12V DC
2. Current: 1.2A at 4V
3. Step Angle: 1.8 deg.
4. No. of Phases: 4
5. Motor Length: 1.54 inches
6. 4-wire, 8 inch lead
7. 200 steps per revolution, 1.8 degrees
8. Operating Temperature: -10 to 40 °C
9. Unipolar Holding Torque: 22.2 oz-in
